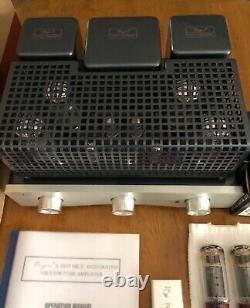

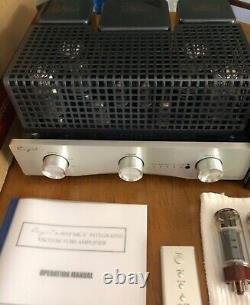

MINT Cayin A-50T MKII Tube Integrated Amp W Phono Stage


Cayin A-50T MKII Tube Integrated Amp with MM Phono Stage. This unit is absolutely mint... Comes with the original inner/outer boxes, manual, remote, power cord & (used) factory tubes. This beautifully crafted hand made amp is designed to deliver the wonderful sound of the original classic Marantz 8B amp with features and build quality that would not have been dreamed of in the 1960's.

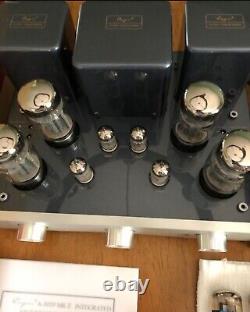

The A-50T contains four EL34s and produces Class AB1 amplification. This unit's superb craftsmanship features point-to-point wiring, top-of-the-line EI audio transformers, and a specially developed toroidal core net transformer. Two 12AX7EHs and two 12AU7s are used in the preamplifier. The signal processing is exclusively made through tubes, with a simple switch to fine tune output taps for 4 or 8 ohms. A removable cage snaps in and out of position to either protect the tubes or showcase high-quality components.

A remote control for all functions, including triode and ultralinear circuit options, perfects the carefully laced accessories package. The Cayin Audio A-50T MKII uses four EL-34 Output Tubes for Class AB1 Push Pull Amplification, but is upgradable to KT-88 Tubes by a switch on the bottom of the unit. The craftsmanship is first rate, inside and outside. The torodial power transformer and EI output transformers are specially designed and manufactured for the Cayin A-50T MKII. Cayin's unique Soft-start circuit helps extend tube life typically 3000 hours! The removable cage snaps on and off anytime. Cover on has a clean classic look, cover off...

35watt Per Channel Integrated Amp (Ultralinear). Switchable EL-34 or KT-88 Tube Capability.

Soft Start Technology, Extends Tube Life! Ultralinear or Triode Mode Selector from Remote. Enough power to drive most small and medium size loudspeakers. Tubes always sound richer, smoother, more natural. Rigid Chassis for solid build platform. Adjust volume, select input and choose output mode (Ultralinear = 35watt per channel or Triode=16watt per channel) from your seat. Toroidal transformers run cooler, and have lower stray magnetic fields so they run quieter with no hum. Specifications: Power Supply: 120V AC, 50-60Hz Amp Type: All Tube Integrated Amp Wattage: 35w/Ch.

Triode Mode Frequency Response: 10Hz=50kHz (+/- 1.5dB) S/N Ratio: 89dB THD: 1% (1kHz) Input Impedance: 100K ohms Input Sensitivity: 370mV Output Impedance: 4ohm or 8ohm output connectors Power Consumption: 280W Tubes: 4 x EL-34 Output Tubes, 2 x 12AU7, 2 x 12AX7 Input Tubes Bias Voltage for EL34 Output Tubes: 0.3vdc Premium Parts: Ceramic Tube Sockets, ALPS Volume Control Capacitors: Nichicon & Realcap Capacitors Terminations: WBT style speaker terminals and Gold plated input jacks Inputs: CD, Aux 1, Aux 2, Tuner Inputs Chassis: Hand made Chassis with Point to Point wiring Output Transformers: Custom designed, hand wound Transformer Type: Torodial Power Transformer Protective Cage: Included Remote Control: Included (batteries not included) Dimensions: 14? D Weight: 28.6 lbs. Once the tube cage is off the Bias adjustment controls and test points are easily accessible and adjustable from the top of the Chassis. The amp is very stable and typically won't need a bias adjustment for about 1000 hours.
